Product Description：

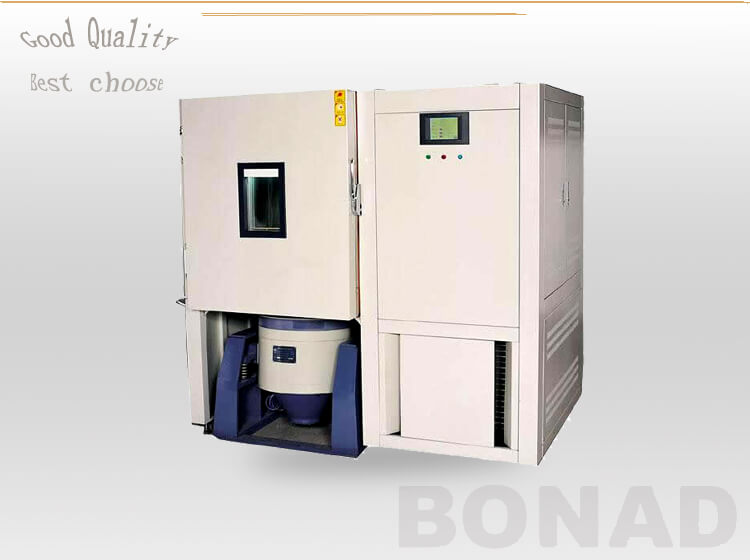

Name：Multi-Functional Temperature Humidity Vibration Three integrated chamber
Type：BND-WSZ
Purpose:
This product are compositive chamber of temperature,humidity and Vibration.It mainly for space flight and aviation,petrochemical engineering,electron,communication,research and other organization to provided changing environment of temperature and humidity,and put electric vibration stress to the sample at the meantime.
Product Spec.and Technical parameter table | ||||
model | BND-WSZ61 | BND-WSZ62 | BND-WSZ63 | |
performance | temperature range | ﹣70oC～﹢150oC | ||
temperature fluctuation | ±0.5oC | |||
temperature uniformity | ≤2oC | |||
temperature deviation | ±2oC | |||
rising and cooling rates of temperature | rates range:3oC/min～15oC/min(average:﹣55oC～﹢80oC) | |||
humidity range | 20～98%RH | |||
humidity deviation | ﹣3～﹢2%R.H.(＞75%R.H.),±5%(＜75%R.H.) | |||
construction | shell | cooling steel plate,surface spray | ||
Inner | steel plate | |||
insulate | Rigid Polyurethane Foam | |||
Cooling System | mode | cascade refrigerating compressor | ||
compressor | Germany The GULUN Semi-closed compressor | |||
inspection window(mm) | 400×500 | |||
Cable port(mm) | Both sideΦ100 | |||
Controller | color LCD touchscreen display | |||
recording equipment | temperature recorder(optional) | |||
communication Interface | RS485 interface,RS232 interface,The software of Upper computer (optional) | |||
Inner dimension(mm) | D | 700 | 900 | 1250 |
W | 800 | 1150 | 1150 | |
H | 900 | 1100 | 1100 | |
Electromotor cover height（mm） | 235 | |||
Power Supply | AC380V 50Hz Three-phase four-wire + protective earth wire | |||
Standard Configuration | A copy of the instruction and test report for the product, A certificate and quality assurance.2 Shelf and 4 shelves . | |||
Remark:The outter dimension desigh by rising and cooling rates of temperature ;2,water-cooling(water temperature 10-28℃,hydraulic pressure 0.1-0.3MPa,to ensure the cooling performance);3,vertical/horizontal vibrating table(optional) | ||||
